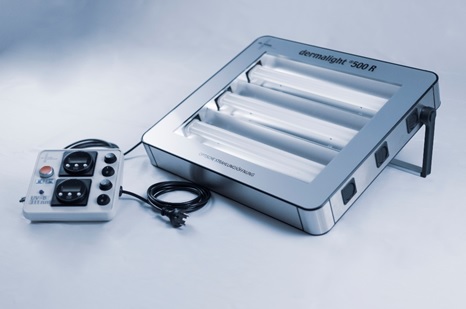

dermalight® 500R

dermalight® 500R-0 (Table unit incl. Amaturerack)

Technical Data

Type Data
Type Dermalight®500R-0 (2 Lamps or 3 Lamps)
Article number 40 07 00 / 41 07 00 & 40 08 00 / 41 08 00
Dimension Module 51x35x7cm (lxwxh) (2 Lamps)

51x46x7cm (lxwxh) (3 Lamps)

Dimension Control Unit 18x18x12cm (lxwxh)
Weight 8kg
Radiation Exit 38,5×25,5cm (2 Lamps)

38,5×33,5cm (3 Lamps)

UV-Lamps 2×36 Watt or 3×36 Watt
Irradiance 15 mW/cm3 (0cm Distance)
Power Supply 230V AC, 50Hz
Class IIa
Mark CE0123
Wavelength UVA or UVB 311nm

Product Explanation

Control Unit _ dermalight®500R-0 (1 Connection)

dermalight®500R-1 bis -4 (Tripod Unit)

Technical Data



Typee Data
Type Dermalight®500R-1 until -4 (3 Lamps)
Article number 40 18 00 / 41 18 00 to 40 48 00 / 41 48 00
Dimension Module 51x46x7cm (lxbxh)
Dimension Control Unit 18x18x12cm (lxbxh)
Weight 66x57x105cm (lxbxh)

15 cm height-adjustable (max. 120cm)

Radiation Exit 40 – 75kg
Article number 38,5×33,5cm
UV-Lamps 2×36 Watt or 3×36 Watt
Irradiance 15 mW/cm3 (0cm Distance)
Power Supply 230V AC, 50Hz
Class IIa
Mark CE0123
Wavelength UVA or UVB 311nm

Productinformation



Dermalight®500R-1 Module A
Dermalight®500R-2 Module A & D
Dermalight®500R-3 Module A, B & D
Dermalight®500R-4 Module A, B, C & D
