dermalight®80R

Around the world without constraints

Brochure dermalight®80R



Dermalight®80R _ BASIC

The new Dermalight®80R BASIC lets you not only use the hand unit externally (with a control-unit) but also thanks to its wide-range power supply you can use the device worldwide, without the need of an additional power transformer.

Also, the state-of-the-art device is compatible with all relevant norms, which are proven by an accredited laboratory in Germany.

All this combined makes the new designed Dermalight®80R BASIC the world’s only hand unit with its uniquely outstanding technical features.

Dermalight®80R _ PLUS

The Dermalight®80R_PLUS utilizes all new technical features of the Dermalight®80R _BASIC but also provides additional security features as per DIN EN ISO 60601-1-2-57. Those security features are for increased patient safety.

The control unit can be upgraded at any time without performing changes to the base unit. However, any upgrade will be performed by the manufacture and has to be send in.



Indications UV-B311 nm
Psoriasis
Vitiligo
Vitamin D Deficiency

Indications UV-A
Eczema
Acne
Psoriasis (PUVA Therapy)
Polymorphic Photodermatosis

Type:
Dermalight®80R BASIC & PLUS

Article number:
202 000 – 242 500 (BASIC) & 203 000 – 243 500 (PLUS)

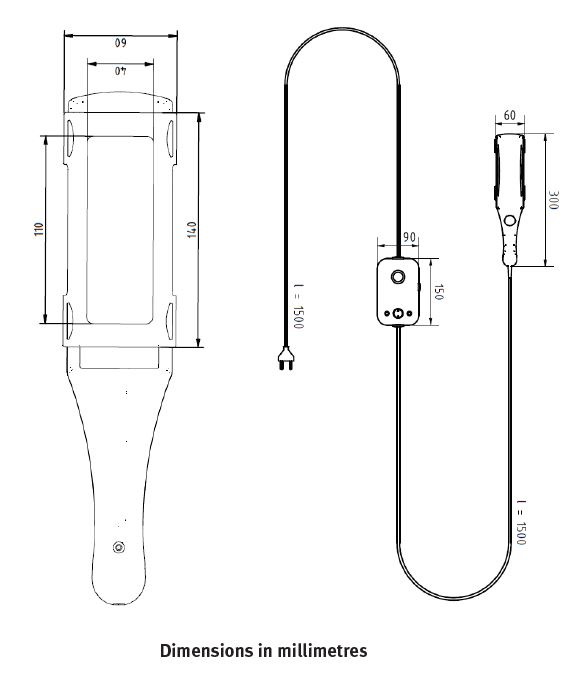

Dimension comb:
300 x 60 x 45 mm (L x W x H)

Dimensions control unit:
150 x 80 x 45 mm (L x W x H)

Weight:
0.80 kg

Irradiation withdrawal:
110 x 40 mm

Irradiance:
7.5 mW / cm²

Power supply:
1 x 250V; 1.0 A; T, 5 x 20, H

Wall wart:
110V – 240V / 50 / 60 Hz (wide-range)

Class:
IIa

Mark:
CE0123

Wavelength (optional):
UVA, UVB 311nm, UVA Woodlight

Download our prescription template and talk to your doctor.

Please note: The regulations, as well as the further processing and procedure (e.g. preparation of a cost estimate, classification of costs, etc.) only valid within Germany.

Application for reimbursement of the costs of a UV irradiation device (PDF)
